CART-ERL-X01

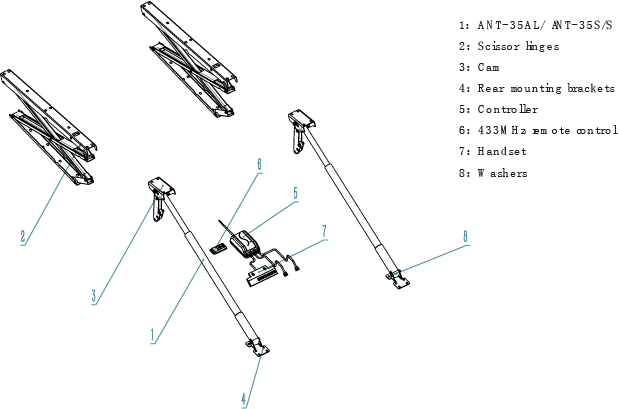

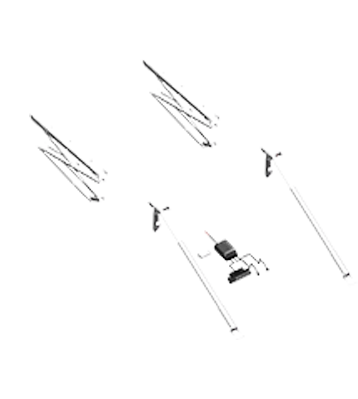

aluminum/stainless steel ANT-35*2, Hinge*2,Cam*2,rear mounting bracket*2,Synchronous controller*1, 433MHz remote control*1,Wired controller*1,Momentary rocker switch*1
Parameters
  • Main features:Open and close the pop up roofs automatically with one click

  • Max load capacity:65 KG

  • Max Lifting height:1000 mm

  • Max lifting speed:8mm/s

  • System installation dimension:length 715mm * width 60mm * height 75mm

  • Total Weight: Actuators 1.5kg*2=3kg Brackets, Cams, etc.1.2kg*2= 2.4kg Total weight around 5.4kg

  • Customizable items:lifting height, load capacity,cam dimensions

  • Applicable campers:Camper van

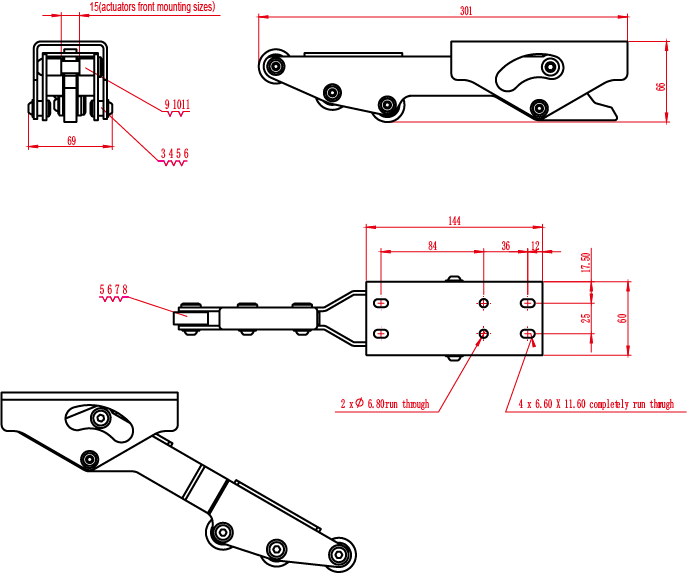

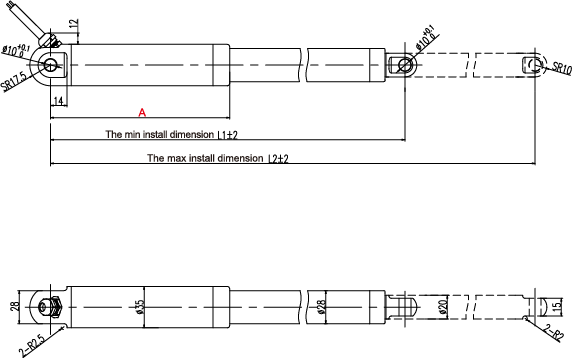

Drawing Dimensions

CART-ERL-X01(图1)

CART-ERL-X01(图2)

CART-ERL-X01(图3)
