CART-ERL-P04

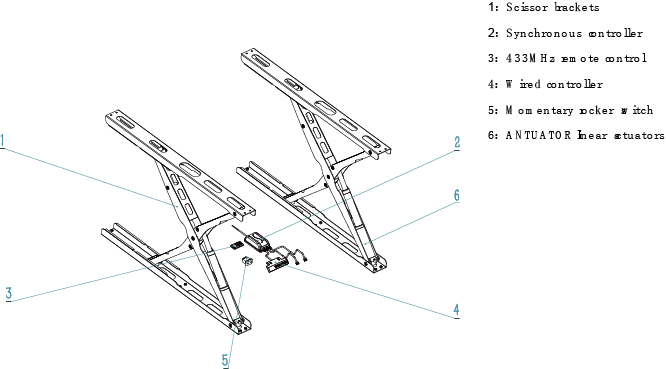

aluminum/stainless steel ANT-52*2, Scissor brackets*2(304 stainless steel with black power coated on surface), Synchronous controller*1, 433MHz remote control*1,Wired controller*1,Momentary rocker switch*1
Parameters
  • Main features:Open and close the pop up roofs automatically with one click.Open and close the pop up roofs manually.

  • Max load capacity:200 KG

  • Max Lifting height:740 mm

  • Lifting time:30 seconds

  • System installation length:1250 mm

  • System width:105±1 mm

  • System closing height:110 mm

  • Customizable items:lifting height, load capacity

  • Applicable RV models:Caravan

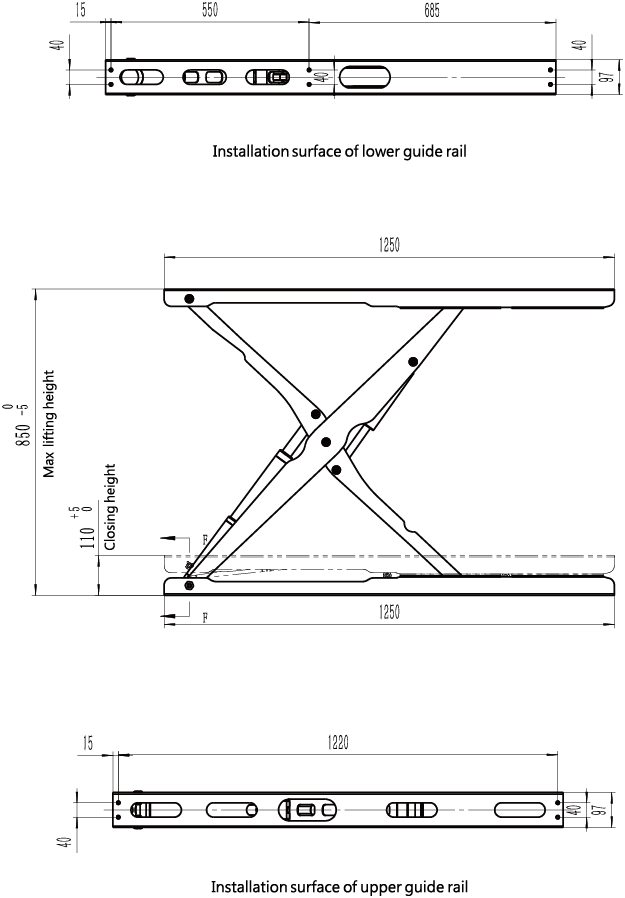

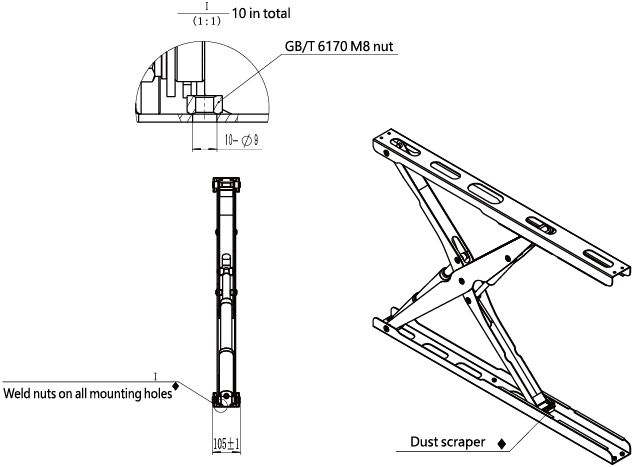

Drawing Dimensions

CART-ERL-P04(图1)

CART-ERL-P04(图2)

CART-ERL-P04(图3)
