CART-ERL-X02

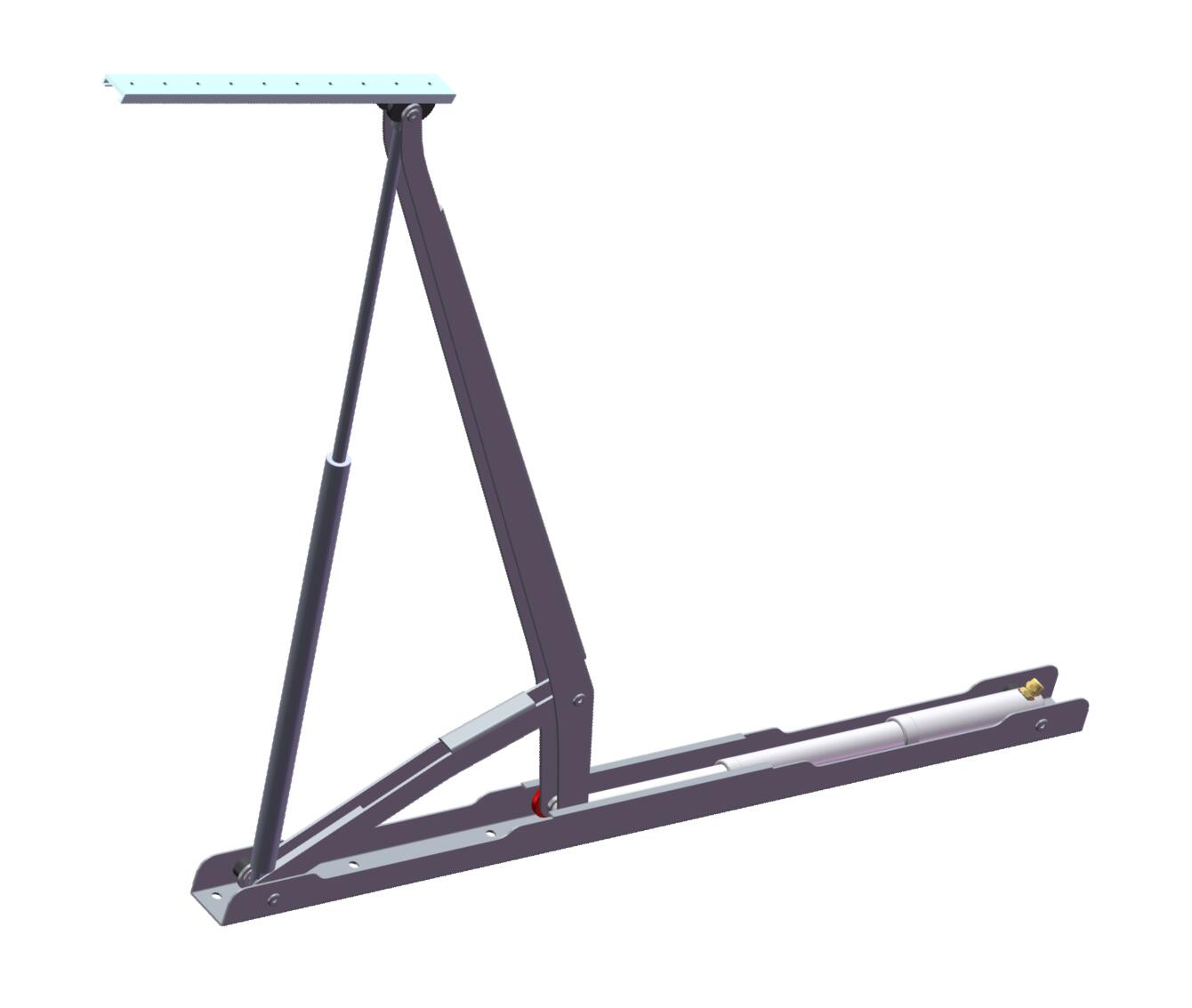

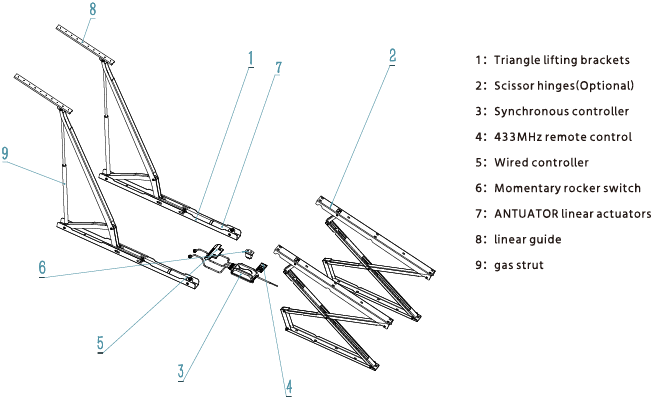

aluminum/stainless steel ANT-35*2, Triangle lifting brackets*2,Scissor hinges(Optional)*2,Synchronous controller*1, 433MHz remote control*1,Wired controller*1,Momentary rocker switch*1
Parameters
  • Main features:Open and close the pop up roofs automatically with one click.Open and close the pop up roofs manually.

  • Max load capacity:70 KG

  • Max Lifting height:1000 mm

  • Lifting time:20-30 seconds

  • System installation length:Roof length ≥2200 mm

  • System width:50 mm(60mm including screws)

  • System closing height:80 mm

  • Customizable items:lifting height, load capacity

  • Applicable campers:Camper van

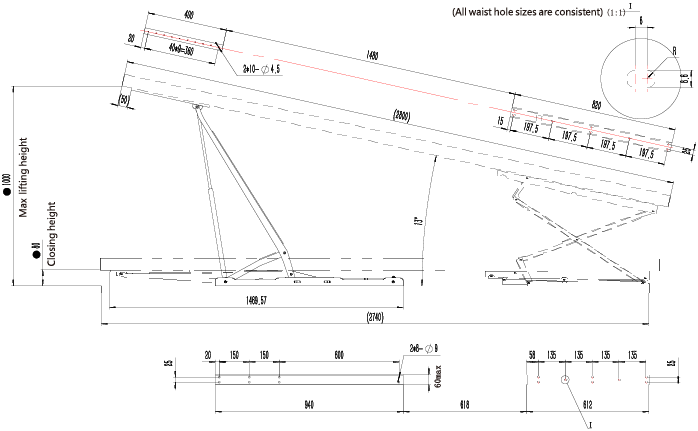

Drawing Dimensions

CART-ERL-X02(图1)

CART-ERL-X02(图2)
